Professional flail mulcher with a high work rate

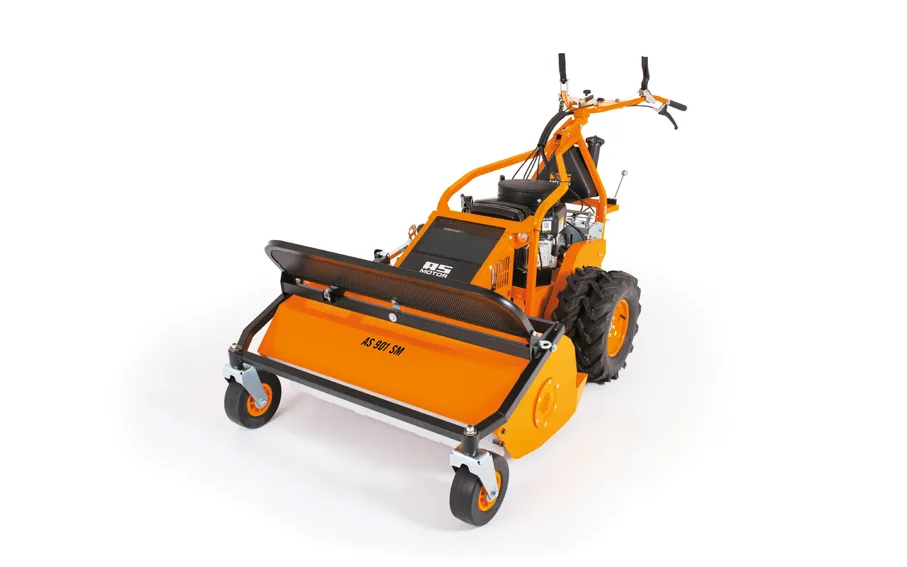

The AS 901 SM delivers high work rates and perfect handling whether on slopes, in dense growth or high grass. A Briggs & Stratton Vanguard Series 2-cylinder engine with 480 ccm displacement, up to 16.0 hp and an oil and fuel pump performs in tough conditions without the risk of engine damage. Propulsion occurs via a 5-speed manual transmission with reverse gear (1.8 km/h) that covers a speed range from 1.2–4.0 km/h. The rear axle differential is permanently locked, resulting in excellent traction even on wet grass. Twin tyres ensure even greater traction and stability while a vertically installed engine provides a low centre of gravity and balanced distribution of weight, at a total of 215 kg.
The AS 901 SM is conveniently operated via four levers. Individual wheels are controlled via a patented steering and brake clutch system by which light pressure on the wheel’s respective operating lever opens the limited slip differential; full pressure activates the brake on that wheel. Furthermore, the limited slip differential is permanently locked when in drive and the automatic parking brake engages as soon as the drive lever is released. This added safety feature stops the flail mower whether on a slope or level ground. Teflon-coated stainless steel Bowden cables ensure minimal expenditure of force. The result is safe, simple, and convenient operation.
- Performs on slopes Extra fuel and oil pump with oil pressure switch optimize performance on slopes.
Features and Benefits
Height adjustment
Easy cutting height adjustment with lever.
Manual transmission
5-gear manual transmission with limited slip differential and reverse gear for excellent propulsion, even on wet grass.
Adjustable operating bar
Guide bar can be adjusted laterally and in height to adapt to the size of each operator.
Impact guard
A perforated impact guard ensures a high level of operator safety.
Warranty
AS-Motor machines are covered by the manufacturer’s warranty. Please refer to the manufacturer’s warranty terms for full cover, conditions and exclusions.
Technical Data
| cutting width | 90 cm |
|---|---|
| maximum grass height | 130 cm |
| engine manufacturer | Vanguard |
| engine type | V-Twin |
| 4-Stroke engine, single-cylinder / twin-cylinder | / |
| displacement | 480 cm³ |
| work rate max. | 11,9/16,0 kW (hp) |
| rated power | 10,7/14,5 kW (hp) |
| nominal speed | 3500 rpm |
| starting device, manual / elektrical | / |
| traction drive, mechanical/hydrostatic | / |
| Number of speeds | 5 |
| speed max. | 4 km/h |
| blade clutch, electrical / mechanical | / |
| pairs of flails | 26 |
| flail form, Y / hammer | / |
| cutting height | 10 – 100 mm |
| ill quantity – fuel tank | 5 l |
| Dimension L/W/H | 220x104x105 cm |
| weight | 215 kg |
Specifications are supplied by AS-Motor and may change without notice. Images are for illustrative purposes only.
