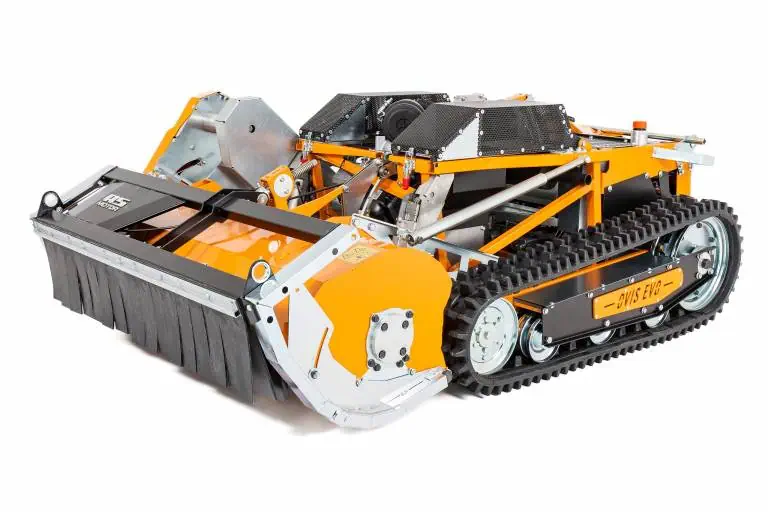

The next step in user comfort: the new AS 1000 Ovis EVO RC
The remote-controlled flail mower with enormous mowing performance, extreme slope capability and extremely easy handling and maintenance. By professionals, for professionals.
The cutting height of the AS 1000 Ovis EVO RC can be adjusted in the range of 40-110 mm by remote control.
- cutting width: 100 cm
- maximum grass height: 150 cm
- engine manufacturer: Vanguard
- engine type: V-Twin 3864
- 4-Stroke engine, single-cylinder / twin-cylinder: ○ / ●
- displacement: 627 cm³
- work rate max.: 17,2/23,0 kW (hp)
Features and Benefits
Remote-controlled cutting height adjustment
The cutting height of the AS 1000 Ovis EVO RC can be adjusted in the range of 40-110 mm by remote control.
Electric actuators
Two electric actuators move the cutting deck to the desired cutting height. The mowing deck is still mounted on a pivoting bearing and can move upwards.
Mechanical cutting height adjustment
Simple and robust. The set cutting height can be read off in five stages via a scale on the device. Transport position is reached via hand spindle.
Bypass for brakes and hydrostats
The hydrostats can be released and the brake opened via two easy-to-reach slides. This makes freeing and towing the machine considerably easier.
Remote-controlled blade clutch
An electric actuator switches the blade clutch. The advantage is that the very robust, mechanical blade clutch of the standard Ovis is retained.
Intuitive control with simple remote control
The remote control only differs from the standard Ovis in that it has three additional buttons/toggle switches. Controlling the machine is as simple as ever.
Quick release chain
The quick-release tensioners of the drive chains can be tightened and loosened using the extension supplied as standard and an additional ratchet. This is done from the rear of the machine. The chain tensioners are easily accessible. The spring must be pre-tensioned to a length of approx. 12.5 cm.
Cooling air shaft
The hinged perforated plate cover acts as a pre-filter for the engine cooling air. It can be opened in seconds to clean the intake shaft. This is particularly necessary in dry and dusty working conditions.
Simple wiring harness
The Ovis was designed from the outset with electrical simplicity in mind. Its wiring harness has been reduced to a minimum, enabling any specialist dealer to carry out troubleshooting and repairs quickly and easily. Complex electronic systems have been expressly omitted.
Hydro wheel motors
The two hydrostats of the Ovis are designed for professional use. With a maintenance interval of 400 hours (first oil change after 50 hours), they significantly reduce maintenance costs. The maximum torque of the hydro wheel motors is 474 Newton metres.
Manufacturer Warranty
AS-Motor provides a warranty system for professional users, municipalities and property owners.
Technical Data
| cutting width | 100 cm |
| maximum grass height | 150 cm |
| engine manufacturer | Vanguard |
| engine type | V-Twin 3864 |
| 4-Stroke engine, single-cylinder / twin-cylinder | ○ / ● |
| displacement | 627 cm³ |
| work rate max. | 17,2/23,0 kW (hp) |
| rated power | 15,5/21,1 kW (hp) |
| nominal speed | 3600 rpm |
| starting device, manual / elektrical | ○ / ● |
| Hydrostatic drive on caterpillar track | ● |
| Number of speeds | stufenlos |
| reverse | ● |
| speed max. | 5 km/h |
| automatic parking brake | ● |
| blade clutch, electrical / mechanical | ○ / ● |
| closed mower deck | ● |
| pairs of flails | 56 |
| flail form, Y / hammer | ● / ○ |
| cutting height | 40 – 110 mm |
| double-sided usable flails | ● |
| ill quantity – fuel tank | 12 l |
| Dimension L/W/H | 184x115x69 cm |
| weight | 428 kg |
Changes in technology, equipment and price are reserved. No claims can be derived from information or illustrations.
