The power and convenience that municipal users want – With rear discharge
All our experience in one machine for daily, professional and local authority use. The maximum in performance, durability and comfort. You can rely on it. Every day.

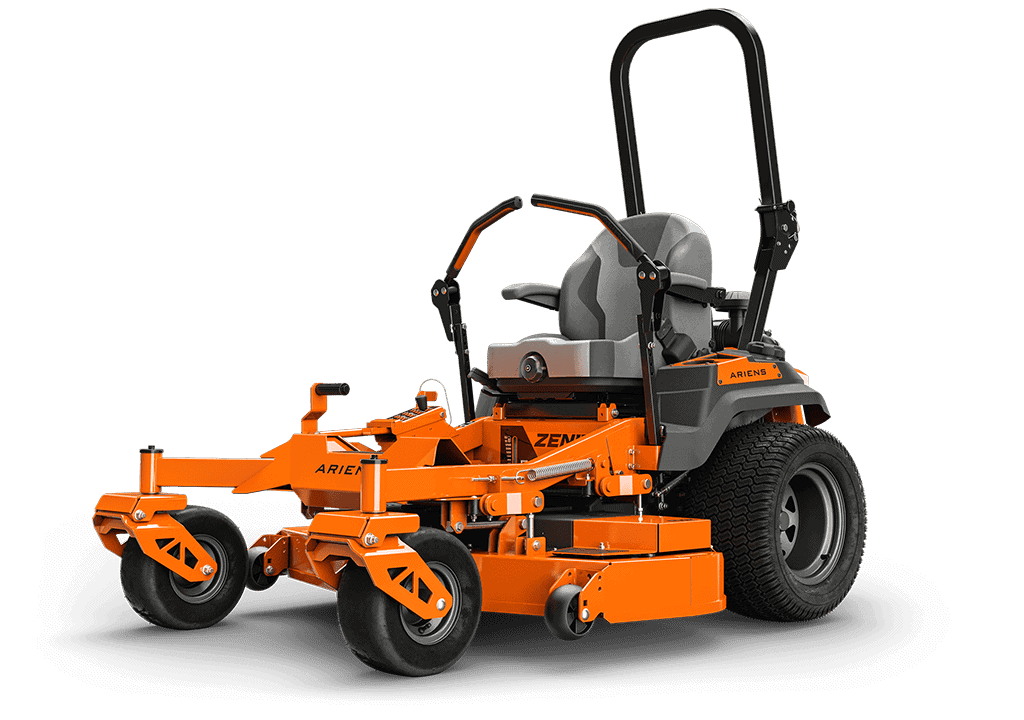

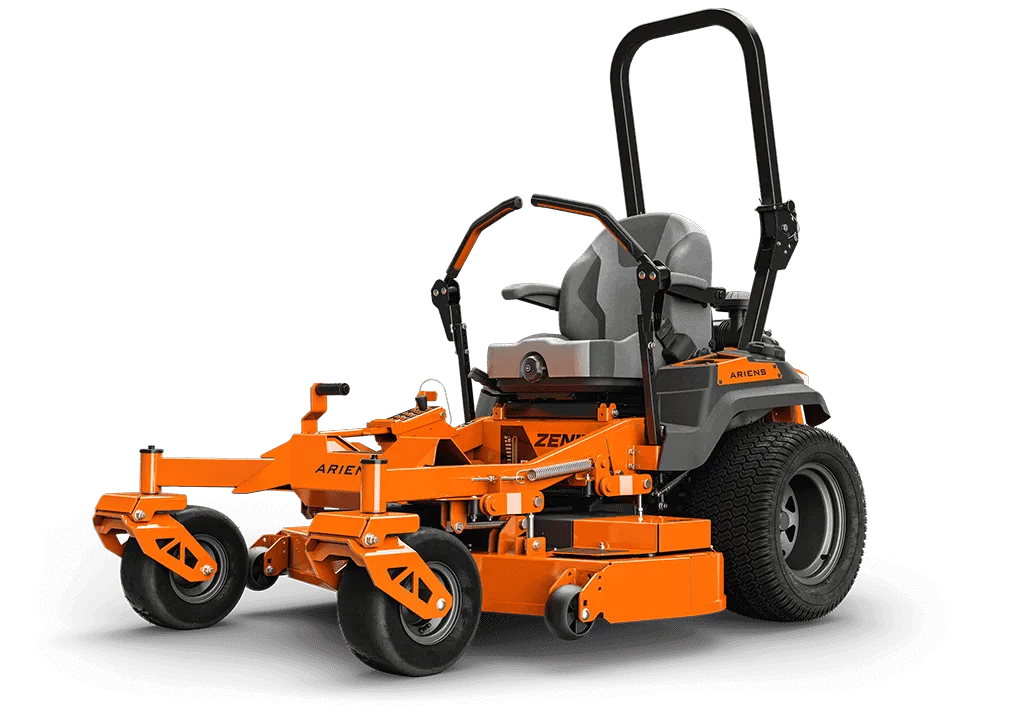

The choice for real mowing professionals and large areas. The “R” on the ZENITH 60R stands for “rear-discharge”. The mown grass is discharged to the rear, between the wheels. Advantage: The mowed material is not thrown onto paths or into flower beds. Kawasaki professional FX730V engine, 726 cm3 with double air filter. Suspended wheel forks and cushioned, adjustable comfort seat for maximum driving comfort. Professional cutting deck with 152 cm cutting width. Can be used with side discharge or optional Muchkit. With ROPS and Profi warranty as standard.
- ZENITH 60R features a 152cm (60″) fabricated, rear discharge deck constructed of strong 10-gauge steel
- Powered by a professional-grade 726cc Kawasaki® FX730V V-Twin engine
- Industry-leading, fully welded tubular steel frame
- Constant Belt Tension (CBT) system extends belt life
- ROPS fitted as standard for added protection for the operator
- Front caster fork suspension and full suspension seat for a smoother ride
- Foot-operated, vertical pin selector deck lift system with 15 cutting positions
- Range of optional accessories is available
- 4-year or 750 hours warranty
Features and Benefits
Industry-leading frame design
Large-dimensioned tubular frame and as few weld seams as possible, thanks to automotive bending technology, carry the loads of the machine with unrivalled strength and stability.
New ENVY mower deck
The mowing deck is the most heavily loaded component of a mower. Stability is particularly important here: The new ENVY mower deck has improved air flow and an enlarged discharge. Lying grass is lifted higher and cut perfectly. With 4-point suspension for permanent fixation and parallelism. Furthermore, Blade spindles made of forged aluminium. Cooler running and more impact and vibration resistant than cast spindles. Standard in the course of the 2025 season on APEX and ZENITH & the new IKON.
Automatic belt tensioner system
The automatic CBT (Constant Belt Tension) technology keeps the belt tension of the mower deck constant at all times. This increases the service life of the belt, compensates for wear and prevents belt slippage for a consistently high-quality cutting pattern.
Mower deck lifting by foot pedal
The solid cutting deck is raised conveniently and effortlessly using a foot pedal. To select one of the 15 cutting heights from 3.8 – 12.7 cm, a metal plug is inserted into the respective recess in the display.
Fully adjustable comfort seat
Maximum driving comfort is essential for working productively and safely for hours on end. Keeping hard shocks and vibrations away from the driver is particularly important for his well-being and health. The hydro-pneumatic suspension of the driver's seat can be precisely adjusted to the driver's body weight. Adjustable armrests and a high backrest allow the driver to find their ideal sitting position.
ROPS
The standard rollover protection system with safety belt (ROPS) offers additional protection for the driver. It is foldable and ergonomically tilted backwards to prevent painful bumping of the elbow while driving.
Road homologation lighting kit
A new lighting kit is available for use on public roads. Installation by specialised dealers.
Warranty
Ariens is known across the globe for manufacturing durable, high-performance machines – and their warranty system in the EMEAA region reinforces that reputation. When professionals and homeowners invest in Ariens Zero-Turn mowers, they are gaining access to one of the most trusted warranty programmes in the industry.
Technical Data
| Model Number | 991323 |
| Engine | Kawasaki ® FX730V V-Twin OHV |
| Engine Displacement | 726 cm³ |
| Drive System | Hydro-Gear ® ZT-3200 Transaxles |
| Maximum engine Power | 16.6 kW / 22.2 hp at 3,600 rpm. |
| Fuel Capacity | 19.3 l |
| Max. Speed Forward / Backward | 12,9 km/h / 6.4 km/h (8.0 mph / 4 mph) |
| Deck Type, Rear discharge / Side discharge | / |
| Deck Material | 3.6 mm sheet steel with double thickness around the blade support |
| Deck Construction | welded |
| Deck Lift System | foot operated |
| Number of blades | 3 |
| Spindle Material | Forged Aluminium |
| Spindles drive | V-belt |
| Spindle Clutch | Electric Ogura ® |
| Cutting Width | 152 cm (60") |
| Cutting Hights | 3.8 cm – 12.7 cm (1.5" – 5.0") |
| Cutting Positions | 15 |
| Wheels Front Axle | x |
| Front Wheels | 13 x 6.5-6 |
| Rear Wheels (inch) | 22 x 12-12 |
| Seat | Full suspension, adjustable high back seat w/ lumbar support and armrests |
| Weight | 423 kg |
| Length | 201 cm |
| Width | 157 cm |
| Height | 125 cm w/ ROPS folded down; 184 cm w/ ROPS up |
| Limited Warranty Machine | 4 years / 750 hrs. |
Please note: Specifications, features and warranty terms are manufacturer information and may change without notice. Images are for illustration purposes.
