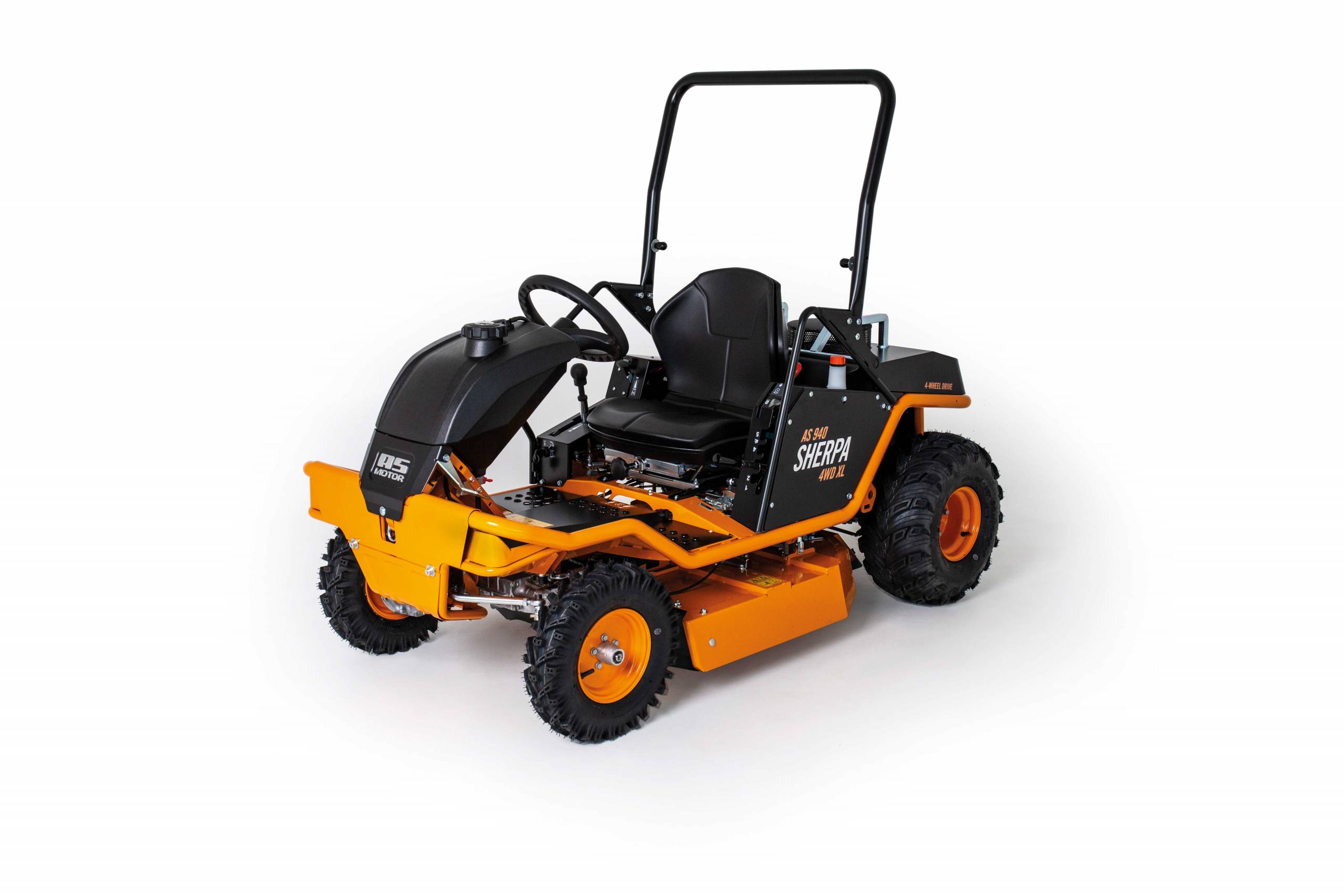

High-grass, ride-on mower with permanent all-wheel drive and more ground clearance
The AS 940 Sherpa 4WD XL enables comfortable and safe mowing on slopes thanks to its Briggs & Stratton 2-cylinder engine with 724 ccm, 27 hp, and oil and fuel pump. Its permanent all-wheel drive, XL tyres with field stud tread, low centre of gravity and low total weight of only 298 kg provide stability on slopes. Hydrostatic transmission allows the precise adaptation of speed to match the terrain, reaching 6.7 km/h and 6.5 km/h in reverse. Just one lever controls the drive, brake and parking functions for easy operation, while limited slip differential can be activated for excellent propulsion and traction in extreme situations. A brake pedal returns the drive lever to neutral and automatically engages the parking brake.
The AS 940 Sherpa 4WD XL’s surfing mower deck is equipped with AS cross-blade technology in which bearing-supported blades cut the grass, while a mulching blade positioned above them shreds the cuttings. The mulched grass is then deposited between the wheels for added safety on slopes and wet grass, while the mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. With a 90 cm cutting width, the AS Sherpa 940 4WD XL achieves work rates reaching 5,500 m² per hour. Cutting heights can be adjusted to 5 levels from 80–135 cm and an optional mulch kit is available for even finer mulching results.
- The AS 940 Sherpa 4WD XL enables comfortable and safe mowing on slopes thanks to its Briggs & Stratton 2-cylinder engine with 724 ccm, 27 hp, and oil and fuel pump. Its permanent all-wheel drive, XL tyres with field stud tread, low centre of gravity and low total weight of only 298 kg provide stability on slopes. Hydrostatic transmission allows the precise adaptation of speed to match the terrain, reaching 6.7 km/h and 6.5 km/h in reverse. Just one lever controls the drive, brake and parking functions for easy operation, while limited slip differential can be activated for excellent propulsion and traction in extreme situations. A brake pedal returns the drive lever to neutral and automatically engages the parking brake.
- The AS 940 Sherpa 4WD XL’s surfing mower deck is equipped with AS cross-blade technology in which bearing-supported blades cut the grass, while a mulching blade positioned above them shreds the cuttings. The mulched grass is then deposited between the wheels for added safety on slopes and wet grass, while the mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. With a 90 cm cutting width, the AS Sherpa 940 4WD XL achieves work rates reaching 5,500 m² per hour. Cutting heights can be adjusted to 5 levels from 80–135 cm and an optional mulch kit is available for even finer mulching results.
Features and Benefits
AS mulching mower deck
Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.
Separate air cooling supply
Separate engine air cooling and hydrostatic transmission optimize performance.
Switchable limited slip differential
Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.
XL tyres
XL tyres for 30 mm additional ground clearance.
Warranty
Disc mowers AS 585 E KM AS 585 KM AS 700 KM Disc mowers AS-Motor’s modern alternative for forage production guarantees less wear, less maintenance and above all less vibration.
Technical Data
| cutting width | 90 cm |
| engine manufacturer | B&S |
| engine type | Professional Series 8 |
| 4-Stroke engine, single-cylinder / twin-cylinder | ○ / ● |
| displacement | 724 cm³ |
| work rate max. | 20,1/27,0 kW (hp) |
| rated power | 16,5/22,4 kW (hp) |
| nominal speed | 3300 rpm |
| traction drive, 2WD rear / 4WD permanent | ○ / ● |
| traction drive, hydrostat variable | ● |
| speed max. | 6,7 km/h |
| limited-slip differential | ● |
| automatic parking brake | ● |
| Single knife / cross knife / Y-flail | ○ / ● / ○ |
| side discharge / rear discharge | ○ / ● |
| closed mowing deck | ● |
| floating mowing deck | ● |
| cutting height | 80 – 135 mm |
| ill quantity – fuel tank | 17 l |
| seat suspention, standard / option | ● / ○ |
| Dimension L/W/H | 191x106x156 cm |
| weight | 298 kg |
Technical data is supplied by AS-Motor and may change without notice. Please check the manufacturer’s product page for the latest information.
