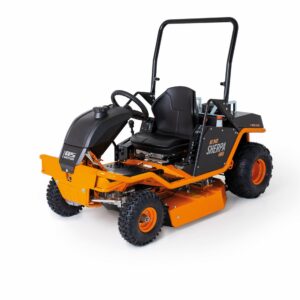

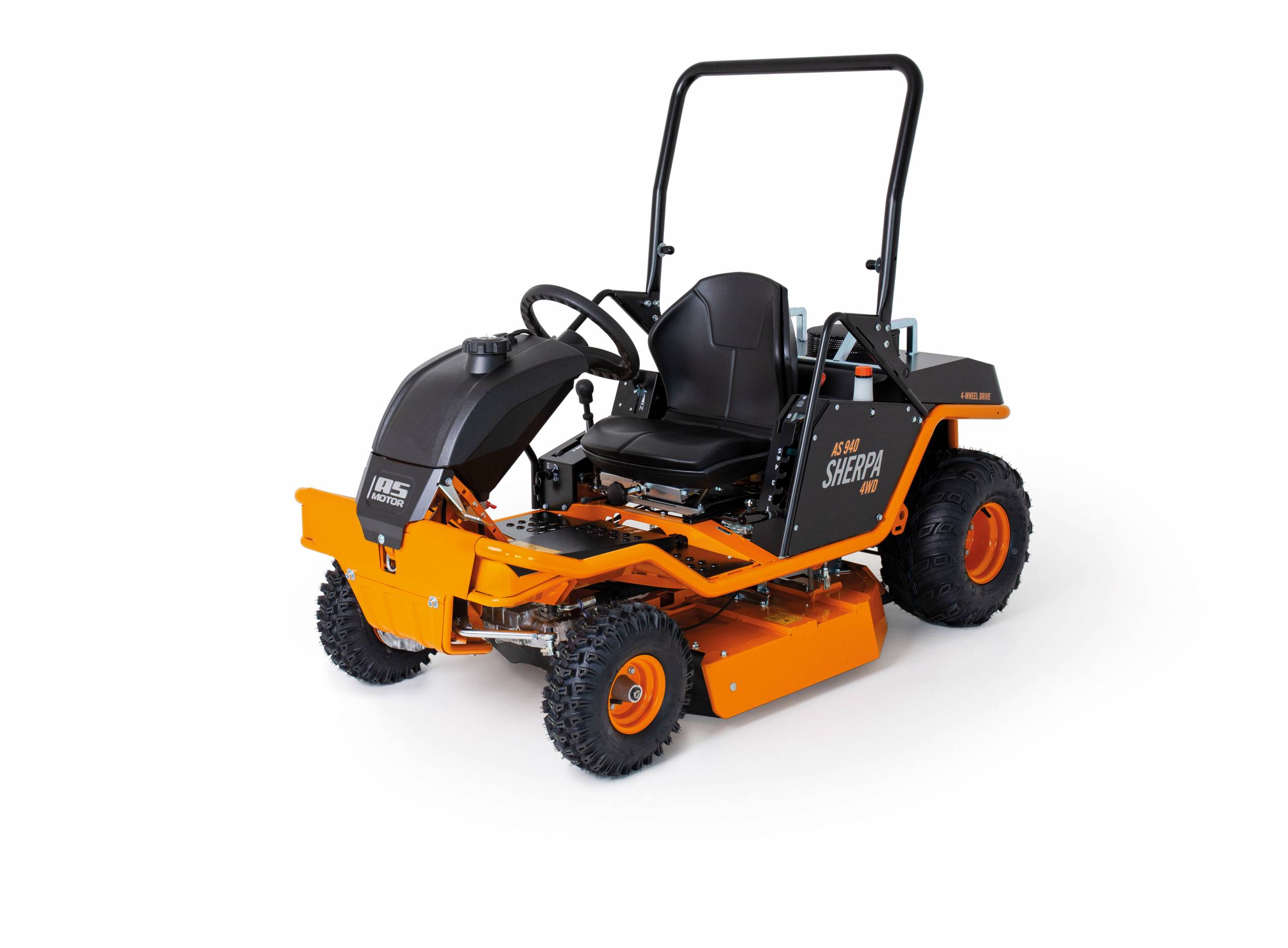

High-grass, ride-on mower with permanent all-wheel drive
The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Loncin engine with 708 ccm displacement, up to 21,7 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.
The professional 2-cylinder Loncin engine delivers a rated power of 21.2 hp with its 708 cm3. Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.
- The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Loncin engine with 708 ccm displacement, up to 21,7 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.
- The professional 2-cylinder Loncin engine delivers a rated power of 21.2 hp with its 708 cm3. Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.
Features and Benefits
AS mulching mower deck
Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.
Separate air cooling supply
Separate engine air cooling and hydrostatic transmission optimize performance.
Switchable limited slip differential
Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.
Stable, folding bar
Greater operator safety in the machine’s limit area.
Warranty
Disc mowers AS 585 E KM AS 585 KM AS 700 KM Disc mowers AS-Motor’s modern alternative for forage production guarantees less wear, less maintenance and above all less vibration.
Technical Data
| cutting width | 90 cm |
| engine manufacturer | Loncin |
| engine type | LC2P77F |
| 4-Stroke engine, single-cylinder / twin-cylinder | ○ / ● |
| displacement | 708 cm³ |
| work rate max. | 16,0/21,7 kW (hp) |
| rated power | 15,6/21,2 kW (hp) |
| nominal speed | 3400 rpm |
| traction drive, 2WD rear / 4WD permanent | ○ / ● |
| traction drive, hydrostat variable | ● |
| speed max. | 6,2 km/h |
| limited-slip differential | ● |
| automatic parking brake | ● |
| Single knife / cross knife / Y-flail | ○ / ● / ○ |
| side discharge / rear discharge | ○ / ● |
| closed mowing deck | ● |
| floating mowing deck | ● |
| cutting height | 50 – 105 mm |
| ill quantity – fuel tank | 17 l |
| seat suspention, standard / option | ● / ○ |
| Dimension L/W/H | 191x98x152 cm |
| weight | 294 kg |
Technical data is supplied by AS-Motor and may change without notice. Please check the manufacturer’s product page for the latest information.
