High-grass, ride-on mower with permanent all-wheel drive

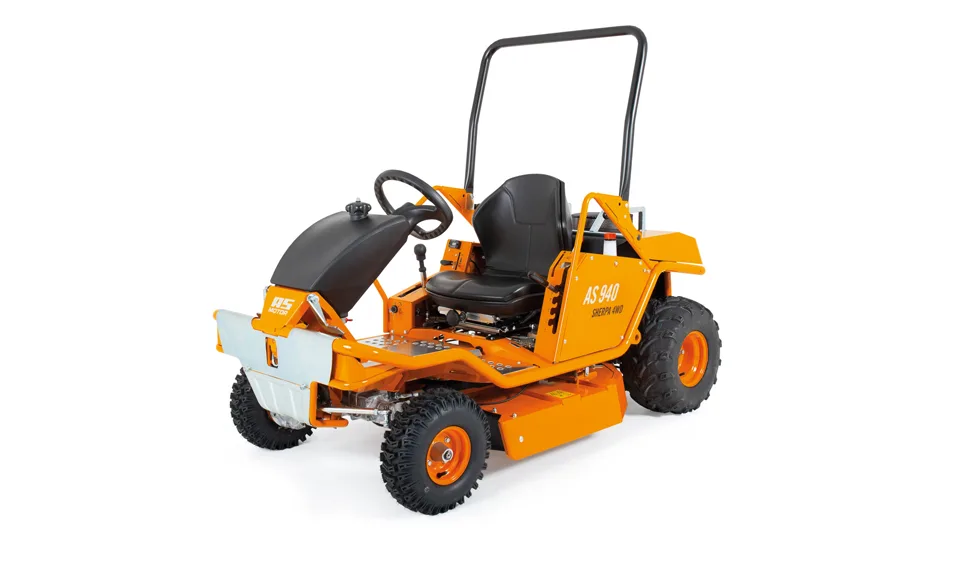

The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Briggs & Stratton engine with 724 ccm displacement, up to 27 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.
Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.
Stability and comfort
With a highly stable tubular frame, the AS 940 Sherpa 4WD performs even under harsh conditions. Operators up to 1.9 m tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

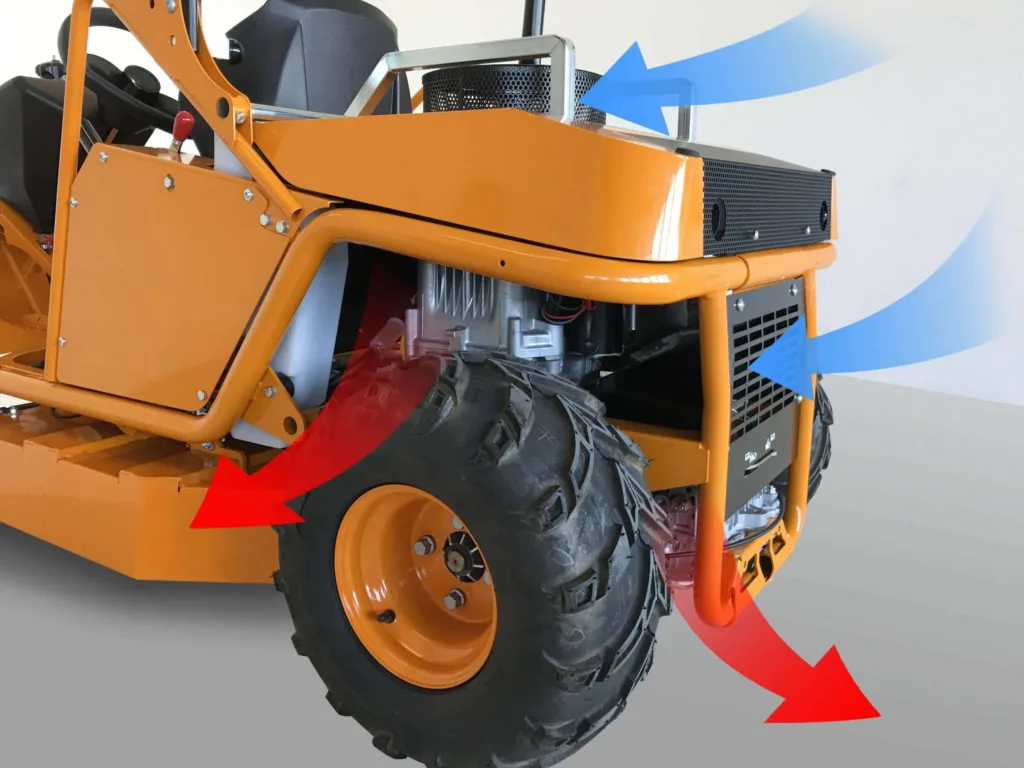

The AS 940 Sherpa 4WD is engineered for continuous operation with two separate ventilation circuits for the engine and hydrostatic transmission. The engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system prevents overheating and ensures the machine’s long service life.
Product advantages
All-wheel drive (AS 940)
Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.
Surfing mulch-mower deck
Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.
Ergonomic sitting position provides excellent driving comfort
Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.
Stable tube frame
High stability and torsional rigidity with heavy load.
Optimal all-terrain mobility
Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.
Variable hydrostatic transmission (ride-on mower)
Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.
Stable, folding bar
Greater operator safety in the machine’s limit area.
Product details
AS mulching mower deck
Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.
Separate air cooling supply
Separate engine air cooling and hydrostatic transmission optimize performance.
Switchable limited slip differential
Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.
Stable, folding bar
Greater operator safety in the machine’s limit area.
Warranty
AS-Motor understands that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why they go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.
Technical Data
| cutting width | 90 cm |
| engine manufacturer | B&S |
| engine type | Professional Series 8 |
| 4-Stroke engine, single-cylinder / twin-cylinder | ○ / ● |
| displacement | 724 cm³ |
| work rate max. | 20,1/27,0 kW (hp) |
| rated power | 16,5/22,4 kW (hp) |
| nominal speed | 3300 rpm |
| traction drive, 2WD rear / 4WD permanent | ○ / ● |
| traction drive, hydrostat variable | ● |
| speed max. | 6,2 km/h |
| limited-slip differential | ● |
| automatic parking brake | ● |
| Single knife / cross knife / Y-flail | ○ / ● / ○ |
| side discharge / rear discharge | ○ / ● |
| closed mowing deck | ● |
| floating mowing deck | ● |
| cutting height | 50 – 105 mm |
| fill quantity – fuel tank | 17 l |
| seat suspension, standard / option | ● / ○ |
| Dimension L/W/H | 191x98x152 cm |
| weight | 290 kg |
Accessories
Trailer
Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.
Trailer hitch Sherpa
To connect the AS trailer.
Snow blade
Width: 1107 mm, height: 348 mm. Pivots on both sides.
Mulch kit – AS Sherpa
For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.
Snow chains
Cross-track chain for the drive wheels.
Weatherproof cab
Weather protection for adverse conditions.
