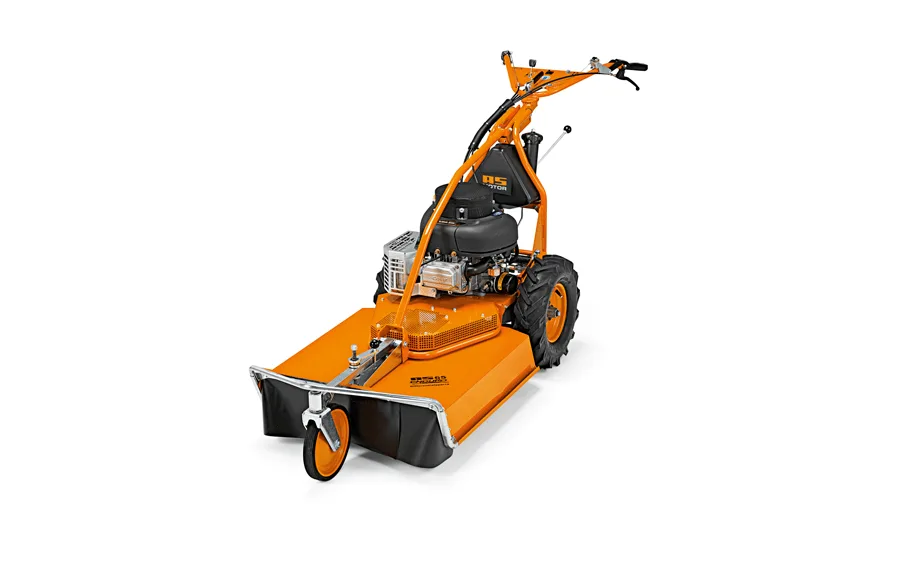

Professional Allmäher powered by a Briggs & Stratton engine
Mulch where others hit their limits. Equipped with a Briggs & Stratton Series 3 INTEK engine with an oil and fuel pump, the AS 65 4T B&S masters inclines up to 35 degrees without running the risk of engine damage. A separate engine and blade shaft protect the engine in case of unseen obstacles. Propulsion occurs via a 5-speed manual transmission with reverse gear (2.4 km/h) that covers a speed range from 1.6–5.1 km/h. Work rates reaching 3,300 m² per hour are possible due to a powerful Briggs & Stratton engine with up to 13.0 hp, traction drive and a 65 cm cutting width. The AS 65 4T B&S effortlessly cuts grass up to 150 cm high. Not least, the engine/blade reduction of 1:2 delivers outstanding cutting performance while the AS cross-blade cutting and shredding system achieves a fine mulching result. The AS 65 4T B&S is thus suitable for virtually every application, whether on slopes or in dense, high grass.
The AS 65 4T B&S works with operating levers that activate the parking brake, the traction drive, the limited slip differential and the blade clutch. Absolute safety for slope mowing is achieved by an automatic parking brake and limited slip differential which remains permanently locked while the machine is in drive. When the drive lever is released, the parking brake automatically engages and the AS 65 4T B&S stops, whether on a slope or level ground. For convenient operation the guide bar is equipped with a V-handlebar which can be adjusted laterally and for height without tools. Cutting height can be adjusted from 50–100 mm. Drive wheels with field studs ensure optimal propulsion on both slopes and level ground.
- Performs on slopes Extra fuel and oil pump with oil pressure switch optimize performance on slopes.
Features and Benefits
Height adjustment
Central, variable height adjustment from 50–100 mm.
Manual transmission
5-speed manual transmission with limited slip differential and reverse gear provide optimal propulsion, even on a wet grass.
Closed mower deck with rear discharge
Grass and growth are finely cut and mulched in the closed mowing deck with rear discharge. This system also enables work close to edges.
Adjustable operating bar
Guide bar can be adjusted laterally and in height to adapt to the size of each operator.
Warranty
AS-Motor machines are covered by the manufacturer’s warranty. Please refer to the manufacturer’s warranty terms for full cover, conditions and exclusions.
Technical Data
| cutting width | 65 cm |
|---|---|
| maximum grass height | 150 cm |
| engine manufacturer | B&S |
| engine type | Series3 INTEK |
| displacement | 344 cm³ |
| work rate max. | 9,7/13,0 kW (hp) |
| rated power | 7,6/10,3 kW (hp) |
| nominal speed | 3300 rpm |
| side discharge / rear discharge | / |
| Single knife / cross knife / Y-flail | / / |
| cutting height | 50 – 100 mm |
| traction drive, mechanical/hydrostatic | / |
| Number of speeds | 5 |
| speed max. | 5,1 km/h |
| ill quantity – fuel tank | 5 l |
| Dimension L/W/H | 220x71x99 cm |
| weight | 125 kg |
Specifications are supplied by AS-Motor and may change without notice. Images are for illustrative purposes only.
