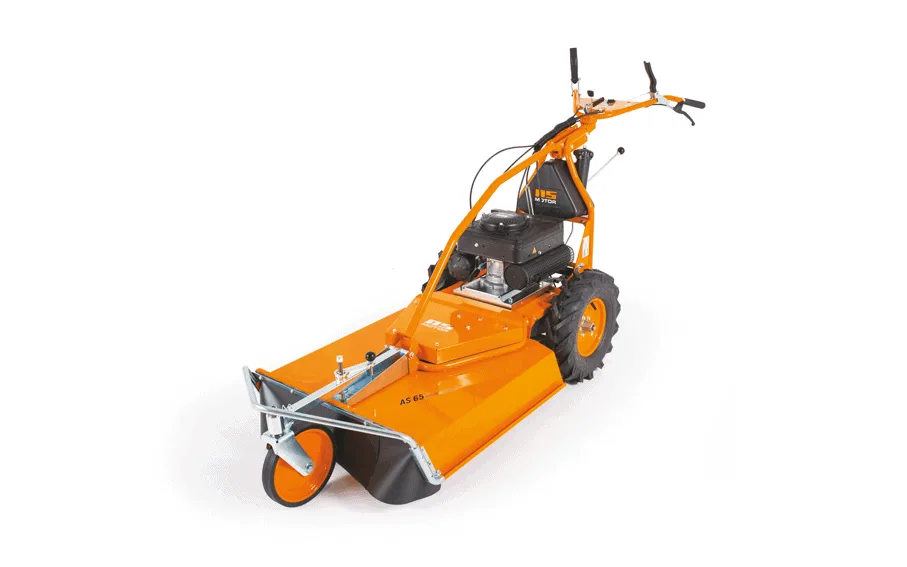

Modern Allmäher for slopes and difficult terrain
Mulch where others hit their limits. The AS 65 2T ES is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling work on inclines of 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque provides full power in high, wet grass. A third crankshaft bearing and friction discs on the wing blade protect the engine in the event of unseen obstacles. Propulsion occurs via a 5-speed manual transmission with reverse gear (2.2 km/h) that covers a speed range from 1.6–4.5 km/h. Work rates reaching 2,900 m² per hour are possible due to a high-performance 2-stroke engine with up to 6.7 hp and traction drive. The AS 65 2T ES easily cuts grass up to 120 cm high. Not least, the engine/blade reduction of 1:2 delivers outstanding cutting performance. The AS cross-blade cutting and shredding system achieves a fine mulching result, even in high growth.
The AS 65 2T ES works with operating levers that activate the parking brake, the traction drive, the limited slip differential and the blade clutch. Absolute safety for slope mowing is achieved by an automatic parking brake and limited slip differential which remains permanently locked while the machine is in drive. When the drive lever is released, the parking brake automatically engages and the AS 65 2T ES stops, whether on a slope or level ground. For convenient operation the guide bar is equipped with a V-handlebar which can be adjusted laterally and for height without tools. Cutting height can be adjusted in a range from 55–100 mm.
- Engine suitable for slopes The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.
Features and Benefits
Height adjustment
Central, variable height adjustment from 50–100 mm.
Manual transmission
5-speed manual transmission with limited slip differential and reverse gear provide optimal propulsion, even on a wet grass.
Closed mower deck with rear discharge
Grass and growth are finely cut and mulched in the closed mowing deck with rear discharge. This system also enables work close to edges.
Adjustable operating bar
Guide bar can be adjusted laterally and in height to adapt to the size of each operator.
Warranty
AS-Motor machines are covered by the manufacturer’s warranty. Please refer to the manufacturer’s warranty terms for full cover, conditions and exclusions.
Technical Data
| cutting width | 65 cm |
|---|---|
| maximum grass height | 120 cm |
| engine manufacturer | AS-Motor |
| engine type | AS 165 ES |
| displacement | 165 cm³ |
| work rate max. | 4,4/6,0 kW (hp) |
| rated power | 4,0/5,4 kW (hp) |
| nominal speed | 3800 rpm |
| side discharge / rear discharge | / |
| Single knife / cross knife / Y-flail | / / |
| cutting height | 50 – 100 mm |
| traction drive, mechanical/hydrostatic | / |
| Number of speeds | 5 |
| speed max. | 4,1 km/h |
| ill quantity – fuel tank | 5 l |
| Dimension L/W/H | 220x71x99 cm |
| weight | 114 kg |
Specifications are supplied by AS-Motor and may change without notice. Images are for illustrative purposes only.
