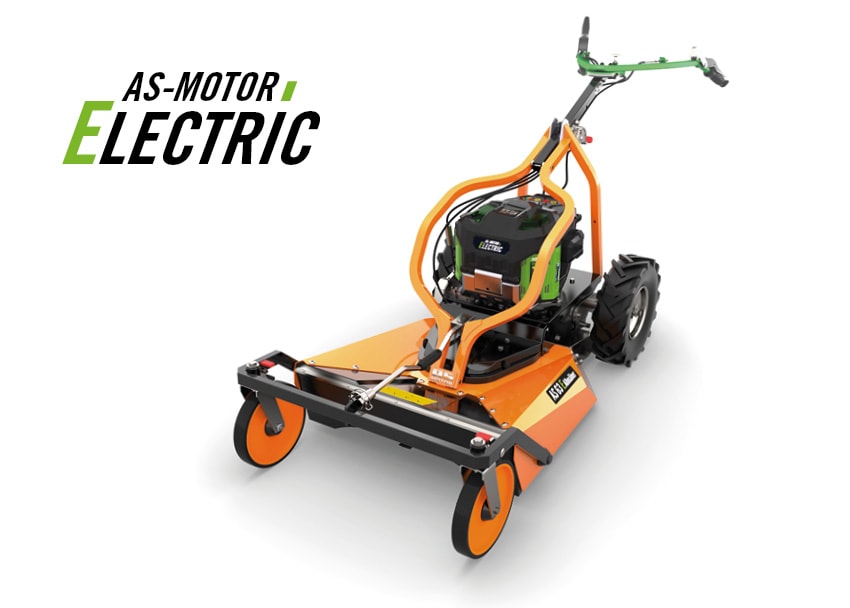

The battery-powered Allmäher for the steep slope
The AS 63 is the slope mower par excellence. With its pneumatic tires and differential lock, it climbs slopes with ease. The engine brake allows it to maintain the selected speed downhill without speeding up. Equipped with a cross-blade system, the AS 63 E-Allmäher easily cuts and shreds tall grass with light brush up to 100 cm high. The new 56 volt AS-Motor Electric drive has the power of a conventional 200 cm3 gasoline engine. It is supplied with energy by two professional hand batteries with 12 Ah each. Together they provide an enormous 1.344 watt-hours of energy. For maximum range, a 28 Ah back battery can also be connected. With a record-breaking energy reserve of then 2.912 watt-hours. If an obstacle is overlooked, the motor and blade shaft separated by a blade clutch provides a high level of motor protection. The continuously variable Variomatic drive allows speeds of 2.0 – 4.0 km/h and can be adjusted on the fly. The reduction gear in the drive with a gear ratio of 1:13.44 gives the machine very high drive power. The lockable front wheels allow safe straight travel across the slope.
Only four operating levers control all functions of the AS 63 E-Allmäher: traction drive, parking brake, blade clutch, differential lock and Variomatic. When the traction drive is activated, the differential lock is automatically engaged. The differential lock remains permanently locked until the traction drive is disengaged. The automatic parking brake also offers a further safety aspect. As soon as the traction drive lever is released, the parking brake automatically engages, keeping the meadow mower safely stationary both on slopes and on level ground. The guide bar, equipped with a V-handlebar, ensures comfortable operation of the individual functions. The handlebar and bar can be adjusted laterally and in height without tools. For easy transport, even in a car, the guide bar can be folded compactly. In addition, hand-arm vibrations are reduced to a minimum by “VibartionProtect”. An optional mulching kit is available for a visually appealing cut in lower grass.
Extend your operational capability in all directions with a comprehensive ECOSYSTEM. The AS-Motor Electric batteries are compatible with all professional hand tools from EGO Powertools.
The new E-Allmäher have been awarded with a gold medal at the demopark novelty competition 2021: the models AS 21 E-Allmäher, AS 62 E-Allmäher and AS 63 E-Allmäher of the manufacturer AS-Motor are the first high grass mowers with electric drive. Learn more.
- Professional battery drive: 56 Volt system with two times 12 Ah Li-Ion batteries. 3.460 watts maximum power and 1.344 watt-hours energy capacity.
- Connection for back battery: For high range, a 28 Ah back battery can be connected in addition to the two hand batteries. Electronic parallel balancing of the connected batteries.
- Mow and mulch in one step: The cross-blade system of this Allmäher easily cuts and shreds high growth with an impressive cutting performance and excellent mulching result.
- Automatic parking brake: When the drive lever is released the machine stops automatically, whether on a slope or level ground.
- Self-braking traction drive: The drive-reduction transmission with a 1:13.44 gear ratio delivers optimal propulsion and brakes autonomously when moving downhill.
- Special feature: automatic locking differential: Only when the drive wheel is spinning, the differential lock activates automatically. Otherwise, it is inactive and the machine is freely controllable.
- High cutting capacity: 1:1.6 engine-blade reduction for high cutting capacity in dense growth.
- Engine protection: Separate engine and blade shaft protects engine.
- Conical mower deck: Conical mower deck generates an airflow that uniformly whirls the cuttings in the mulching unit, delivering excellent cutting results.
Features and Benefits
AS-Motor Electric Drive
Most powerful Electric drive on the market. 56-volt, 3,460 watts maximum power. Two battery slots, active cooling and two operating speeds. Connectivity for additional 1,568 Wh, 28 Ah back battery.
Battery+charger
Not included in delivery: High-performance Li-ion battery 56 Volt 12 Ah, 672 Wh, back battery 28 Ah, 1,568 Wh and quick charger. Charging time: 12 Ah 100% in 60 min, 28 Ah 100% in 210 min.
Easy transport
The AS 63 can be easily folded for compact transport dimensions.
Cleaning and service position
The compact design of the AS 63 enables easy and convenient cleaning.
Warranty
At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.
Technical Data
| cutting width | 61 cm |
| maximum grass height | 100 cm |
| engine manufacturer | AS-Motor |
| engine type | AS-Motor Electric |
| blade clutch | Yes |
| side discharge / rear discharge | No / Yes |
| closed mower deck | Yes |
| Single knife / cross knife / Y-flail | Yes |
| cutting height | 50 – 100 mm |
| traction drive, mechanical/hydrostatic | Yes / No |
| Number of speeds | Vario |
| speed max. | 3,8 km/h |
| limited-slip differential | Yes |
| automatic parking brake | Yes |
| Dimension L/W/H | 191x70x99 cm |
| weight | 74 kg |
