Agile and compact alternative to the bar mower

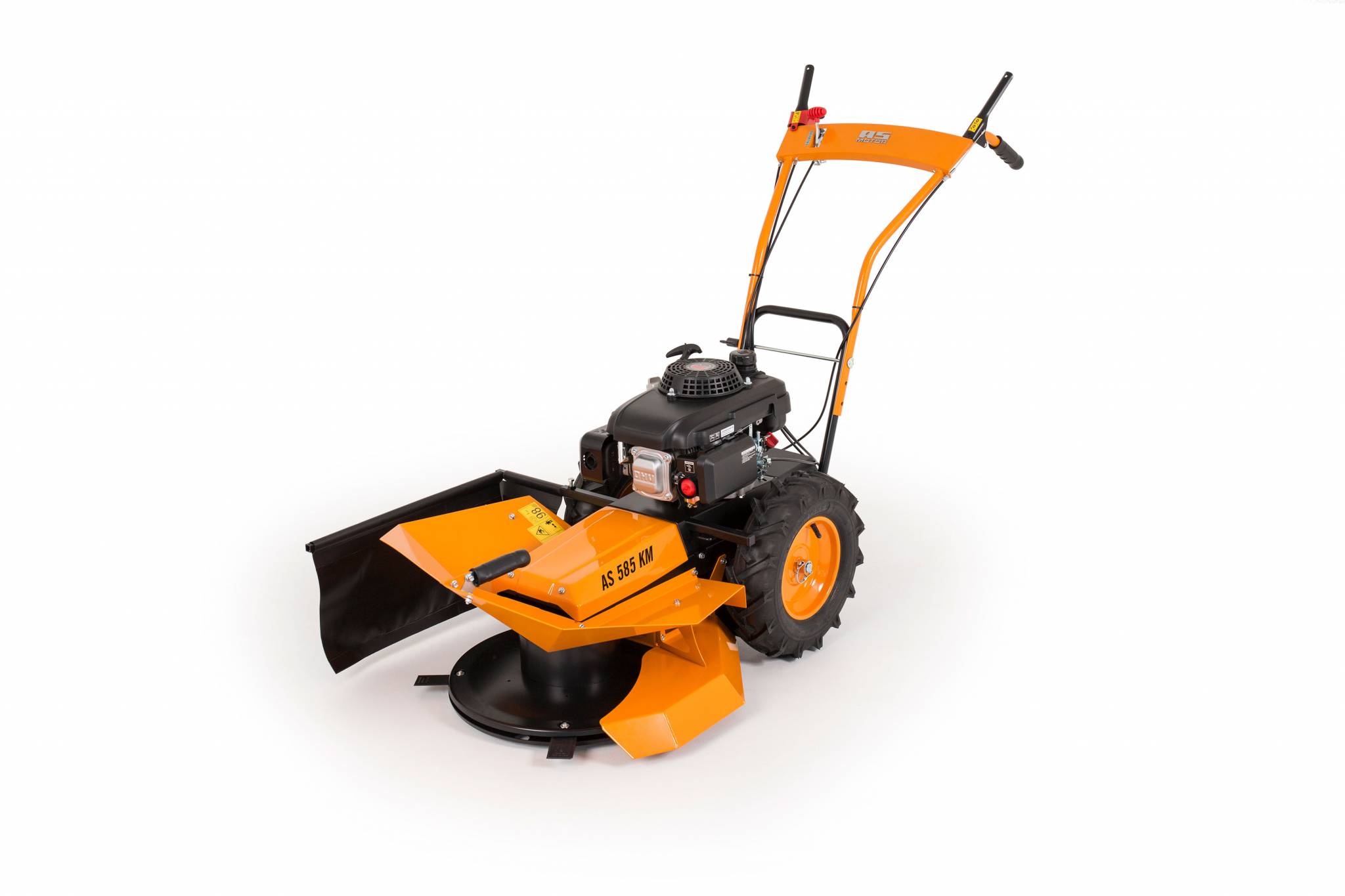

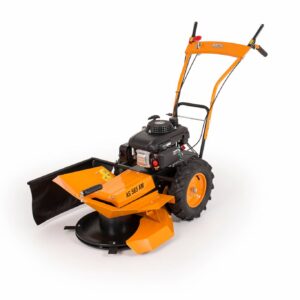

The AS 585 KM turns forage production for animals into an efficient and convenient task by embracing the principle of drum mowing: four flexible, swinging knife blades are fastened to the lower end of a drum and press outward when it rotates, cutting high grass up to 60 cm high a few centimeters above the ground. The long grass is then deposited in swaths for easy collection. A four-stroke OHV engine XP 200 with 196 ccm displacement and up to 4.8 hp combined with a 62 cm cutting width delivers work rates reaching 1,500 m² per hour. The drive function is operated via a lever with a forward speed of 2.4 km/h. The rear wheels’ differential can be locked manually to increase propulsion in difficult terrain, while the guide bar can be adjusted to the operator’s height for comfortable work, or unhinged for simple transport. An outstanding price-performance ratio and low-maintenance operation make the AS 585 KM a convenient and efficient tool for forage production.
- Efficient forage production The cut grass is deposited in swaths, enabling fast and easy collection.
Features and Benefits
Mower unit
Stable mowing plate with hardened reversible double-sided blades, sharpened on both sides.
Lockable differential
Rear wheels with studded tyres and manually lockable differential for excellent propulsion.
Adjustable boom
An adjustable boom determines grass placement.
Guide bar
Guide bar can be adjusted to the individual work height.
Warranty
AS-Motor machines are covered by the manufacturer’s warranty. Please refer to the manufacturer’s warranty terms for full cover, conditions and exclusions.
Technical Data
| cutting width | 62 cm |
|---|---|
| maximum grass height | 60 cm |
| engine manufacturer | XP |
| engine type | XP200 |
| single-cylinder, four-stroke engine | 1 |
| work rate max. | 3,6/4,8 kW (hp) |
| rated power | 3,0/4,4 kW (hp) |
| nominal speed | 3200 rpm |
| cutting height adjustment: levels | 1 |
| number of speeds, belt drive | 1 |
| speed max. | 2,4 km/h |
| starting device, manual / elektrical | / |
| ill quantity – fuel tank | 1,2 l |
| Dimension L/W/H | 173x82x119 cm |
| weight | 66 kg |
Specifications are supplied by AS-Motor and may change without notice. Images are for illustrative purposes only.
