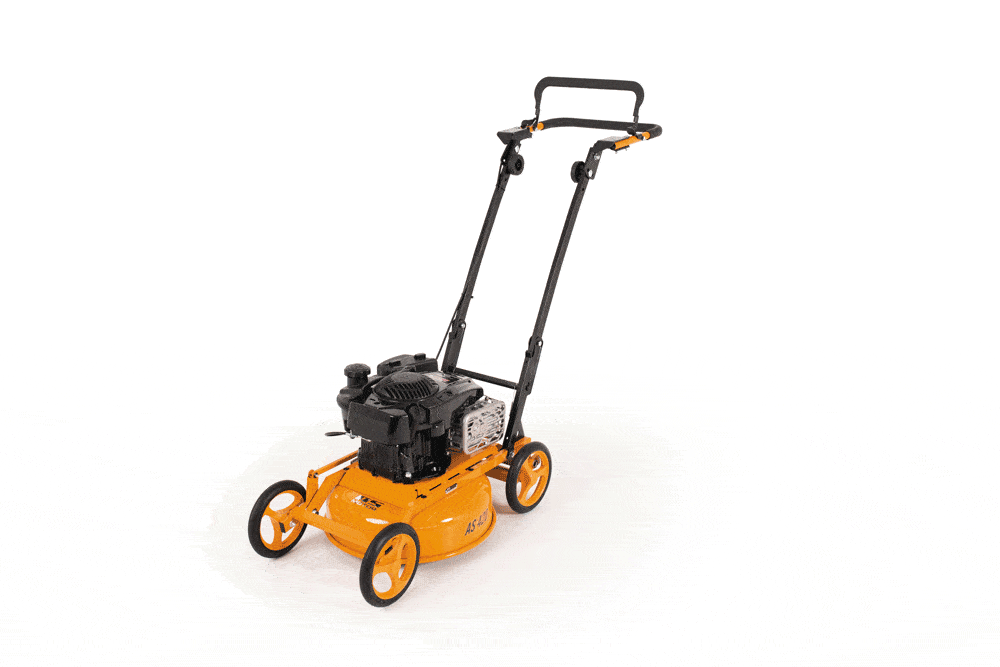

Compact clear-out mower for mulching in confined spaces
Compact and agile. At 30 kg with a 42 cm cutting width, the AS 420 ProClip 4T mulching mower is perfectly suited for clean-out tasks in confined and angled spaces. The Briggs & Stratton engine not only delivers up to 5.7 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight. A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles. A galvanised steel mulching unit with reinforced edges guarantees a long service life, robustness and operator safety, even in difficult conditions. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. This makes the cutting pattern extremely uniform. Cutting height can be adjusted centrally in a range from 40–80 mm via a spring-supported system, by foot or by hand.
A deep mulching unit delivers even finer cutting results. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 420 ProClip 4T saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag or dispose of the cuttings.
- Lightweight and agile: Outstanding handling due to 30 kg total weight and a rotated engine.
- Up to 30% time saved: No collection basket, no cuttings disposal and fertilise the lawn simultaneously.
- Blade shaft bearing arrangement protects the engine: Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.
- Robust construction: Galvanised steel mulching unit with reinforced edge. Stable, height-adjustable guide bar.
Features and Benefits
Stable mulching unit
Closed and deep mulching unit for uniform results.
Cutting height adjustment
Central spring-supported height adjustment.
Special wheels
Double ball-bearing supported, smooth-running wheels press down very little grass.
Perfect balance
A rotated engine achieves uniform weight distribution for better handling.
Warranty
At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.
Technical Data
| cutting width | 42 cm |
| maximum grass height "mulching" | 18 cm |
| engine manufacturer | B&S |
| engine type | 850 PXi Readystart |
| single-cylinder engine, 4-stroke / 2-stroke | Yes / No |
| work rate max. | 4,2/5,7 kW (hp) |
| rated power | 3,2/4,3 kW (hp) |
| nominal speed | 2800 rpm |
| third crankshaft beariing for engine protection | Yes |
| 100% mulching function | Yes |
| cutting height | 40 – 80 mm |
| central cutting height adjustment | Yes |
| cutting height adjustment: levels | 5 |
| Handlebar height adjustment | Yes |
| ill quantity – fuel tank | 1,2 l |
| Dimension L/W/H | 127x46x100 cm |
| weight | 30 kg |
